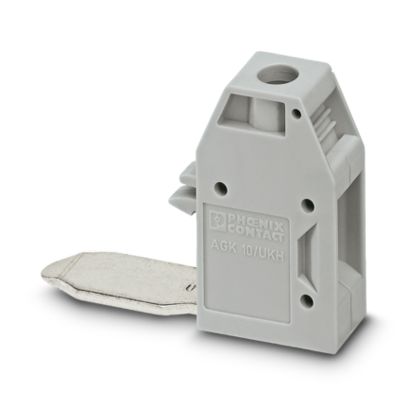

Pick-off terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Screw connection, number of connections: 1, cross section: 0.5 mm² – 10 mm², AWG: 20 – 8, width: 10.2 mm, height: 34.7 mm, color: gray, mounting type: on base element
Tekniset tiedot
Notes
General Can only be used in conjunction with UKH 50/70
Product properties
Product type Pick-off terminal
Number of connections 1
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 1.82 W
Connection data
Number of connections per level 1
Nominal cross section 10 mm²
Cross section AWG (converted acc. to IEC)
Tightening torque 1.5 … 1.8 Nm
Stripping length 10 mm
Internal cylindrical gage B6
Connection in acc. with standard IEC 60947-7-1
Conductor cross section rigid 0.5 mm² … 10 mm²
Cross section AWG 20 … 8 (converted acc. to IEC)
Conductor cross section flexible 0.5 mm² … 10 mm²
Conductor cross section, flexible [AWG] 20 … 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.5 mm² … 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve) 0.5 mm² … 6 mm²
2 conductors with same cross section, solid 0.5 mm² … 4 mm²
2 conductors with same cross section, flexible 0.5 mm² … 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.5 mm² … 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² … 6 mm²
Nominal current 57 A
Maximum load current 57 A (with 10 mm² conductor cross section)
Nominal voltage 1000 V
Nominal cross section 10 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD Ex eb IIC Gb
Operating temperature range -60 °C … 110 °C
Ex-certified accessories 1212589 SF-SL 1,0X5,5-125 S-VDE
Ex temperature increase 40 K (62.7 A / 10 mm²)
Rated voltage 690 V
Rated insulation voltage 630 V
output (Permanent)
Ex level General
Rated current 57 A
Maximum load current 57 A
Contact resistance 0.6 mΩ
Ex connection data General
Torque range 1.5 Nm … 1.8 Nm
Nominal cross section 10 mm²
Rated cross section AWG 8
Connection capacity rigid 0.5 mm² … 10 mm²
Connection capacity AWG 20 … 8
Connection capacity flexible 0.5 mm² … 10 mm²
Connection capacity AWG 20 … 8
2 conductors with same cross section, solid 0.5 mm² … 6 mm²
2 conductors with the same cross-section AWG rigid 20 … 10
2 conductors with same cross section, stranded 0.5 mm² … 6 mm²
2 conductors with the same cross-section AWG flexible 20 … 10
Dimensions
Width 10.2 mm
Height 20.7 mm
Depth 34.7 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Mechanical properties
Mechanical data
Open side panel No
Environmental and real-life conditions
Ambient conditions
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Standards and regulations
Connection in acc. with standard IEC 60947-7-1
Muut tiedot
Tuotenumero 3001763
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE1ZWX
Tuotekoodi BE1ZWX
GTIN 4017918100865
Paino kappaletta kohti (sis. pakkauksen) 14,68 g
Paino kappaletta kohti (ilman pakkausta) 14,68 g
Tullitariffinumero 85369010
Alkuperämaa PL
