Tekniset tiedot
Product properties

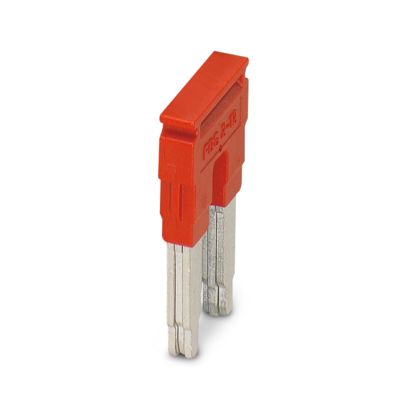

Product type Jumper
Number of positions 2
Pitch 12 mm
Electrical properties
Maximum load current 76 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Connection data
Maximum load current 76 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimensions
Pitch 12 mm
Material specifications
Color red
Material Copper
Flammability rating according to UL 94 V0
Insulating material PA
Mounting
Mounting type Plug-in mounting
Muut tiedot
Tuotenumero 3005950
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE2Z2X
Tuotekoodi BE2Z2X
GTIN 4017918168742
Paino kappaletta kohti (sis. pakkauksen) 10,98 g
Paino kappaletta kohti (ilman pakkausta) 10 g
Tullitariffinumero 85366990
Alkuperämaa PL
| Väri | punainen |
|---|
