Tekniset tiedot
Product properties

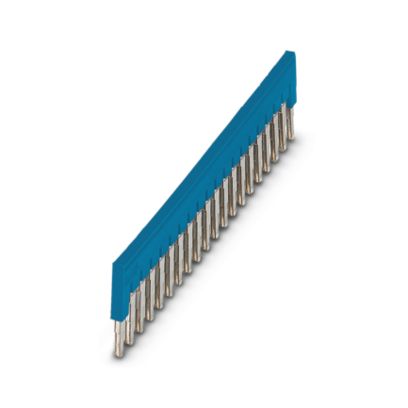

Product type Jumper
Number of positions 20
Pitch 6.2 mm
Electrical properties
Maximum load current 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Connection data
Maximum load current 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimensions
Width 122.3 mm
Height 23 mm
Depth 23 mm
Pitch 6.2 mm
Material specifications
Color blue
Material Copper
Flammability rating according to UL 94 V0
Insulating material PA
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Mounting
Mounting type Plug-in mounting
Muut tiedot
Tuotenumero 3032208
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE2Z2X
Tuotekoodi BE2Z2X
GTIN 4017918981693
Paino kappaletta kohti (sis. pakkauksen) 19,63 g
Paino kappaletta kohti (ilman pakkausta) 19,6 g
Tullitariffinumero 85366990
Alkuperämaa DE
| Väri | sininen |
|---|
