Tekniset tiedot
Notes
General Version with single- or double-sided cutting edge. Keep in mind the possible impact on touch protection as well as the air clearances and creepage distances. For applications in explosion-proof areas, the voltage reduces to the voltage specified in the Ex certificate for bridges that are cut to length.
Product properties

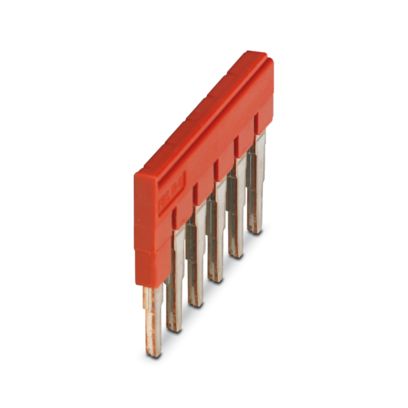

Product type Jumper
Number of positions 6
Pitch 6.2 mm
Electrical properties
Maximum load current 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Connection data
Maximum load current 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimension
Width 35.5 mm
Height 23 mm
Depth 23 mm
Pitch 6.2 mm
Material specifications
Color red
Material Copper
Flammability rating according to UL 94 V0
Insulating material PA
Mounting
Mounting type Plug-in mounting
Muut tiedot
Tuotenumero 1008238
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE2Z2X
Tuotekoodi BE2Z2X
GTIN 4055626480558
Paino kappaletta kohti (sis. pakkauksen) 5,92 g
Paino kappaletta kohti (ilman pakkausta) 5,8 g
Tullitariffinumero 85366990
Alkuperämaa DE
| Väri | punainen |
|---|
