Tekniset tiedot
Product properties

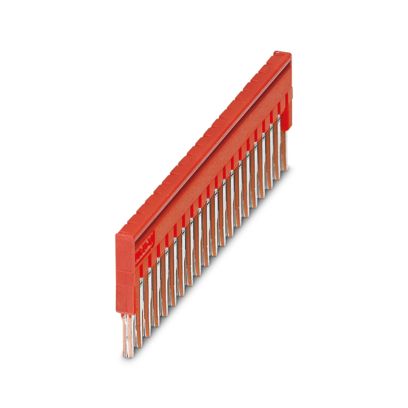

Product type Jumper
Number of positions 20
Pitch 3.5 mm
Electrical properties
Maximum load current 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Connection data
Maximum load current 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimensions
Pitch 3.5 mm
Material specifications
Color red
Material Copper
Flammability rating according to UL 94 V0
Insulating material PA
Mounting
Mounting type Plug-in mounting
Muut tiedot
Tuotenumero 3213069
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2Z2X
Tuotekoodi BE2Z2X
GTIN 4046356599290
Paino kappaletta kohti (sis. pakkauksen) 7,02 g
Paino kappaletta kohti (ilman pakkausta) 4 g
Tullitariffinumero 85366990
Alkuperämaa DE
| Väri | punainen |
|---|
