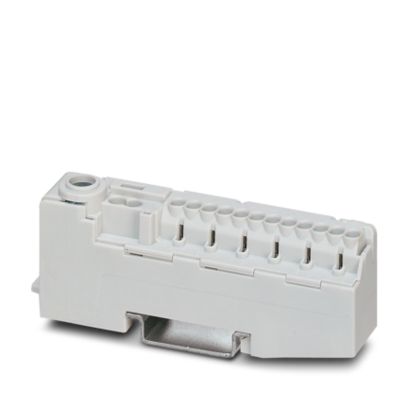

Potential collective terminal
Potential collective terminal, nom. voltage: 1000 V, nominal current: 25 A, connection method: Push-in connection, Screw connection, number of connections: 15, cross section: 1 mm² – 2.5 mm², AWG: 18 – 14, width: 17.5 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Product properties
Product type Potential distributor
Number of connections 15
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 2
Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 2.43 W
Dimensions
Width 17.5 mm
Height 89.5 mm
Depth on NS 35/7,5 36 mm
Depth on NS 35/15 43.5 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Muut tiedot
Tuotenumero 3214016
Pakkausyksikkö 10 Kappaletta
Tuoteavain BE2ZWX
Tuotekoodi BE2ZWX
GTIN 4046356701723
Paino kappaletta kohti (sis. pakkauksen) 41,17 g
Paino kappaletta kohti (ilman pakkausta) 41,1 g
Tullitariffinumero 85369010
Alkuperämaa DE
| Väri | harmaa |
|---|
