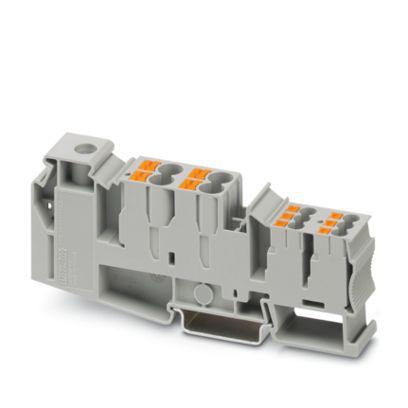

Potential collective terminal
Potential collective terminal, nom. voltage: 1000 V, nominal current: 105 A, connection method: Screw connection, Push-in connection, number of connections: 11, cross section: 1.5 mm² – 50 mm², AWG: 16 – 1/0, width: 16.3 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Notes
General In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered.
Product properties
Product type Potential distributor
Number of connections 11
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 4.06 W
Dimensions
Width 16.3 mm
Height 110.4 mm
Depth on NS 35/7,5 48.8 mm
Depth on NS 35/15 56.3 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3214080
Pakkausyksikkö 20 Kappaletta
Tuoteavain BE2219
Tuotekoodi BE2219
GTIN 4055626167619
Paino kappaletta kohti (sis. pakkauksen) 76,8 g
Paino kappaletta kohti (ilman pakkausta) 76,8 g
Tullitariffinumero 85369010
Alkuperämaa PL
