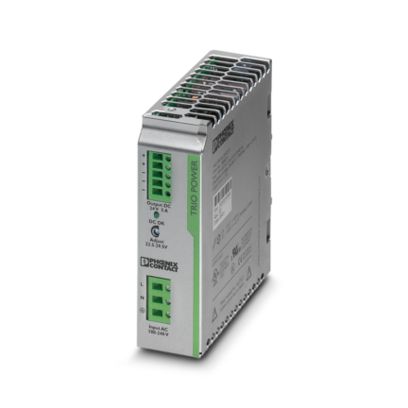

Power supply unit

TRIO POWER power supplies with standard functionality
TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.

Tekniset tiedot

Product properties

Product type Power supply
Product family TRIO POWER
MTBF (IEC 61709, SN 29500) > 2031000 h

Insulation characteristics
Protection class I (with PE connection)
Overvoltage category III
Degree of pollution 2

Dimensions

Width 40 mm
Height 130 mm
Depth 115 mm

Installation dimensions
Installation distance right/left 0 mm / 0 mm
Installation distance top/bottom 50 mm / 50 mm

Material specifications

Housing material Metal
Type of housing Steel sheet, zinc-plated
Side element version Aluminum

Muut tiedot

Tuotenumero 2866310
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPT13
Tuotekoodi CMPT13
GTIN 4046356046640
Paino kappaletta kohti (sis. pakkauksen) 749 g
Paino kappaletta kohti (ilman pakkausta) 618 g
Tullitariffinumero 85044095
Alkuperämaa CN
