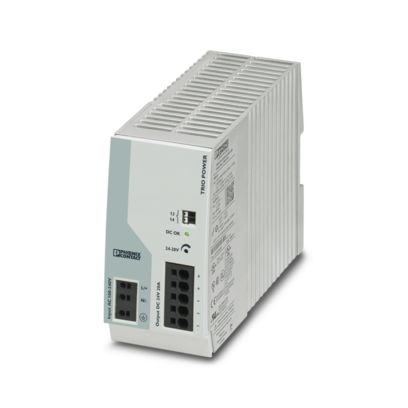

Power supply unit

TRIO POWER power supplies with standard functionality
The TRIO POWER power supply range with push-in connection has been perfected for use in machine building. All functions and the space-saving design of the single and three-phase modules are optimally tailored to the stringent requirements. Under challenging ambient conditions, the power supply units, which feature an extremely robust electrical and mechanical design, ensure the reliable supply of all loads.

Tekniset tiedot

Product properties

Product type Power supply
Product family TRIO POWER
MTBF (IEC 61709, SN 29500) > 1800000 h (25 °C)
> 1000000 h (40 °C)
> 480000 h (60 °C)

Insulation characteristics
Protection class I (in closed control cabinet)
Degree of pollution 2

Electrical properties

Number of phases 1.00
Insulation voltage input/output 3 kV AC (type test)
1.5 kV AC (routine test)

Dimensions

Width 68 mm
Height 130 mm
Depth 160 mm

Installation dimensions
Installation distance right/left 0 mm / 0 mm
Installation distance top/bottom 50 mm / 50 mm

Material specifications

Flammability rating according to UL 94 (housing / terminal blocks) V0
Housing material Metal
Type of housing Aluminum (AlMg3)
Hood version Polycarbonate

Muut tiedot

Tuotenumero 2903151
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPO13
Tuotekoodi CMPO13
GTIN 4046356960939
Paino kappaletta kohti (sis. pakkauksen) 1 614,1 g
Paino kappaletta kohti (ilman pakkausta) 1 474 g
Tullitariffinumero 85044095
Alkuperämaa CN
