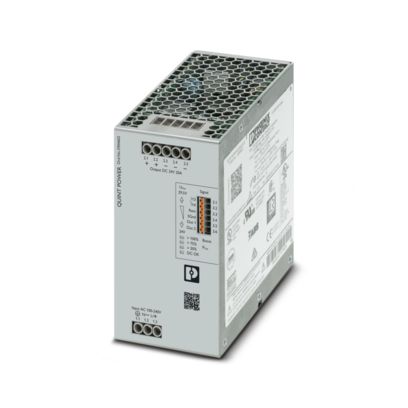

Power supply unit
QUINT POWER -virtalähde vapaavalintaisella lähtövirralla, SFB (selective fuse breaking) -teknologialla ja NFC-liitännällä, syöttö: 1-vaiheinen, lähtö: 24 V DC/20 A.
Tekniset tiedot
Product properties
Product type Power supply
Product family QUINT POWER
MTBF (IEC 61709, SN 29500) > 1112000 h (25 °C)
> 673000 h (40 °C)
> 309000 h (60 °C)
Environmental protection directive RoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection class I
Degree of pollution 2
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 375000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 436000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 267000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 364000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 94000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 128000 h
Additional text 230 V AC
Electrical properties
Product type Power supply
Product family QUINT POWER
MTBF (IEC 61709, SN 29500) > 1112000 h (25 °C)
> 673000 h (40 °C)
> 309000 h (60 °C)
Environmental protection directive RoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection class I
Degree of pollution 2
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 375000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 436000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 267000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 364000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 94000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 128000 h
Additional text 230 V AC
Dimensions
Width 70 mm
Height 130 mm
Depth 125 mm
Installation dimensions
Installation distance right/left 5 mm / 5 mm
Installation distance top/bottom 50 mm / 50 mm
Alternative assembly
Width 122 mm
Height 130 mm
Depth 73 mm
Material specifications
Flammability rating according to UL 94 (housing / terminal blocks) V0
Housing material Metal
Hood version Stainless steel X6Cr17
Side element version Aluminum
Muut tiedot
Tuotenumero 2904602
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPI13
Tuotekoodi CMPI13
GTIN 4046356985352
Paino kappaletta kohti (sis. pakkauksen) 1 660,5 g
Paino kappaletta kohti (ilman pakkausta) 1 306 g
Tullitariffinumero 85044095
Alkuperämaa TH
