Power supply unit

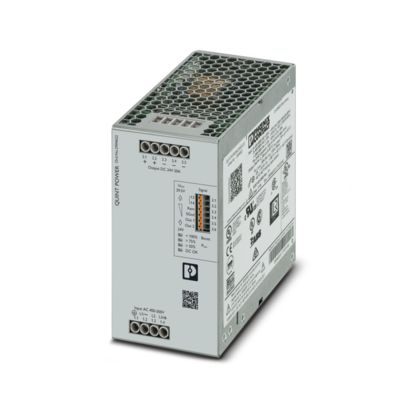

QUINT POWER -virtalähde vapaavalintaisella lähtövirralla, SFB (selective fuse breaking) -teknologialla ja NFC-liitännällä, syöttö: 3-vaiheinen, lähtö: 24 V DC/20 A.
Tekniset tiedot
Product properties
Product type Power supply
Product family QUINT POWER
MTBF (IEC 61709, SN 29500) > 985000 h (25 °C)
> 638000 h (40 °C)
> 311000 h (60 °C)
Environmental protection directive RoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection class I
Degree of pollution 2
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 344000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 320000 h
Additional text 480 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 445000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 432000 h
Additional text 480 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 157000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 152000 h
Additional text 480 V AC
Electrical properties
Number of phases 3.00
Insulation voltage input/output 4 kV AC (type test)
2.4 kV AC (routine test)
Insulation voltage output / PE 0.5 kV DC (type test)
0.5 kV DC (routine test)
Insulation voltage input / PE 3.5 kV AC (type test)
2.4 kV AC (routine test)
Switching frequency 90 kHz … 110 kHz (Auxiliary converter stage)
56 kHz … 500 kHz (Main converter stage)
25 kHz … 500 kHz (PFC stage)
Dimensions
Width 70 mm
Height 130 mm
Depth 125 mm
Installation dimensions
Installation distance right/left 5 mm / 5 mm
Installation distance top/bottom 50 mm / 50 mm
Alternative assembly
Width 122 mm
Height 130 mm
Depth 73 mm
Material specifications
Flammability rating according to UL 94 (housing / terminal blocks) V0
Housing material Metal
Hood version Stainless steel X6Cr17
Side element version Aluminum
Muut tiedot
Tuotenumero 2904622
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPI33
Tuotekoodi CMPI33
GTIN 4046356986885
Paino kappaletta kohti (sis. pakkauksen) 1 581,433 g
Paino kappaletta kohti (ilman pakkausta) 1 203 g
Tullitariffinumero 85044095
Alkuperämaa TH
