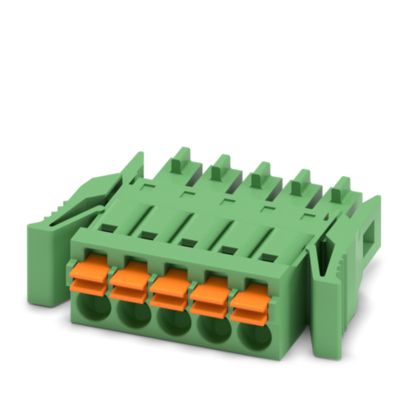

Product properties
Type Standard
Product line COMBICON Connectors S
Product type PCB connector
Product family FMC 1,5/..-ST-RF
Number of positions 5
Pitch 3.5 mm
Number of connections 5
Number of rows 1
Mounting flange Self-locking flange
Number of potentials 5
Electrical properties
Nominal current IN 8 A
Nominal voltage UN 160 V
Degree of pollution 3
Contact resistance 2.7 mΩ
Rated voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
Rated voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
Rated voltage (II/2) 320 V
Rated surge voltage (II/2) 2.5 kV
Connection data
Connection technology
Type Standard
Connector system COMBICON MC 1,5
Nominal cross section 1.5 mm²
Contact connection type Socket
Interlock
Locking type Snap-in locking
Mounting flange Self-locking flange
Conductor connection
Connection method Push-in spring connection
Conductor/PCB connection direction 0 °
Conductor cross section rigid 0.2 mm² … 1.5 mm²
Conductor cross section flexible 0.2 mm² … 1.5 mm²
Conductor cross section AWG 24 … 16
Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² … 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve 0.14 mm² … 0.75 mm²
Cylindrical gauge a x b / diameter 2.4 mm x 1.5 mm / 1.6 mm
Stripping length 10 mm
Specifications for ferrules without insulating collar
recommended crimping tool 1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.25 mm²; Length: 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm … 10 mm
Cross section: 0.75 mm²; Length: 8 mm … 10 mm
Cross section: 1 mm²; Length: 8 mm … 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool 1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN 46228‑4 Cross section: 0.14 mm²; Length: 8 mm
Cross section: 0.25 mm²; Length: 8 mm … 10 mm
Cross section: 0.34 mm²; Length: 8 mm … 10 mm
Cross section: 0.5 mm²; Length: 8 mm … 10 mm
Cross section: 0.75 mm²; Length: 10 mm
Material specifications
Material data – contact
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material Cu alloy
Surface characteristics hot-dip tin-plated
Metal surface terminal point (top layer) Tin (4 – 8 µm Sn)
Metal surface contact area (top layer) Tin (4 – 8 µm Sn)
Material data – housing
Color (Housing) green (6021)
Insulating material PA
Insulating material group I
CTI according to IEC 60112 600
Flammability rating according to UL 94 V0
Glow wire flammability index GWFI according to EN 60695-2-12 850
Glow wire ignition temperature GWIT according to EN 60695-2-13 775
Temperature for the ball pressure test according to EN 60695-10-2 125 °C
Material data – actuating element
Color (Actuating element) orange (2003)
Insulating material PBT
Insulating material group IIIa
CTI according to IEC 60112 275
Flammability rating according to UL 94 V0
Dimensions
Pitch 3.5 mm
Width [w] 27.6 mm
Height [h] 7.8 mm
Length [l] 22.9 mm
Mounting
Connection method Push-in spring connection
Notes
Notes on operation In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical tests
Conductor connection
Specification IEC 60999-1:1999-11
Result Test passed
Test for conductor damage and slackening
Specification IEC 60999-1:1999-11
Result Test passed
Repeated connection and disconnection
Specification IEC 60999-1:1999-11
Result Test passed
Pull-out test
Specification IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
Result Test passed
No. of cycles 25
Insertion strength per pos. approx. 5 N
Withdraw strength per pos. approx. 4 N
Resistance of inscriptions
Specification IEC 60068-2-70:1995-12
Result Test passed
Polarization and coding
Specification IEC 60512-13-5:2006-02
Result Test passed
Visual inspection
Specification IEC 60512-1-1:2002-02
Result Test passed
Dimension check
Specification IEC 60512-1-2:2002-02
Result Test passed
Environmental and real-life conditions
Vibration test
Specification IEC 60068-2-6:2007-12
Frequency 10 – 150 – 10 Hz
Sweep speed 1 octave/min
Amplitude 0.35 mm (10 Hz … 60.1 Hz)
Sweep speed 5g (60.1 Hz … 150 Hz)
Test duration per axis 2.5 h
Durability test
Specification IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level 2.95 kV
Contact resistance R1 2.7 mΩ
Contact resistance R2 2.8 mΩ
Insertion/withdrawal cycles 25
Insulation resistance, neighboring positions less than 5 MΩ
Climatic test
Specification ISO 6988:1985-02
Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress 100 °C/168 h
Power-frequency withstand voltage 1.39 kV
Ambient conditions
Ambient temperature (operation) -40 °C … 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport) -40 °C … 70 °C
Relative humidity (storage/transport) 30 % … 70 %
Ambient temperature (assembly) -5 °C … 100 °C
Electrical tests
Thermal test | Test group C
Specification IEC 60512-5-1:2002-02
Tested number of positions 12
Insulation resistance
Specification IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions > 5 MΩ
Temperature cycles
Specification IEC 60999-1:1999-11
Result Test passed
Air clearances and creepage distances |
Specification IEC 60664-1:2007-04
Insulating material group I
Comparative tracking index (IEC 60112) CTI 600
Rated insulation voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
minimum clearance value – non-homogenous field (III/3) 1.5 mm
minimum creepage distance (III/3) 2 mm
Rated insulation voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
minimum clearance value – non-homogenous field (III/2) 1.5 mm
minimum creepage distance (III/2) 1.5 mm
Rated insulation voltage (II/2) 320 V
Rated surge voltage (II/2) 2.5 kV
minimum clearance value – non-homogenous field (II/2) 1.5 mm
minimum creepage distance (II/2) 1.6 mm
Muut tiedot
Tuotenumero 1952050
Pakkausyksikkö 250 Kappaletta
Tuoteavain AABFAC
Tuotekoodi AABFAC
GTIN 4017918942694
Paino kappaletta kohti (sis. pakkauksen) 3,24 g
Paino kappaletta kohti (ilman pakkausta) 3,2 g
Tullitariffinumero 85366990
Alkuperämaa DE
