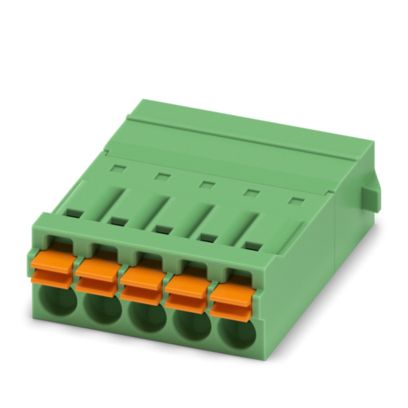

Tekniset tiedot
Product properties
Type Inverted
Product line COMBICON Connectors S
Product type PCB connector
Product family IFMC 1,5/..-ST-RN
Number of positions 5
Pitch 3.5 mm
Number of connections 5
Number of rows 1
Mounting flange Engagement nose
Number of potentials 5
Electrical properties
Nominal current IN 8 A
Nominal voltage UN 160 V
Degree of pollution 3
Contact resistance 2.7 mΩ
Rated voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
Rated voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
Rated voltage (II/2) 320 V
Rated surge voltage (II/2) 2.5 kV
Connection data
Connection technology
Type Inverted
Connector system COMBICON MC 1,5
Nominal cross section 1.5 mm²
Contact connection type Pin
Interlock
Locking type Snap-in locking
Mounting flange Engagement nose
Conductor connection
Connection method Push-in spring connection
Conductor/PCB connection direction 0 °
Conductor cross section rigid 0.14 mm² … 1.5 mm²
Conductor cross section flexible 0.14 mm² … 1.5 mm²
Conductor cross section AWG 24 … 16
Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² … 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve 0.14 mm² … 0.75 mm²
Cylindrical gauge a x b / diameter 2.4 mm x 1.5 mm / –
Stripping length 10 mm
Specifications for ferrules without insulating collar
recommended crimping tool 1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.25 mm²; Length: 5 mm … 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm … 10 mm
Cross section: 0.75 mm²; Length: 8 mm … 10 mm
Cross section: 1 mm²; Length: 8 mm … 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool 1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN 46228‑4 Cross section: 0.14 mm²; Length: 8 mm
Cross section: 0.34 mm²; Length: 8 mm … 10 mm
Cross section: 0.5 mm²; Length: 8 mm … 10 mm
Cross section: 0.75 mm²; Length: 10 mm
Material specifications
Material data – contact
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material Cu alloy
Surface characteristics hot-dip tin-plated
Metal surface terminal point (top layer) Tin (4 – 8 µm Sn)
Metal surface contact area (top layer) Tin (4 – 8 µm Sn)
Material data – housing
Color (Housing) green (6021)
Insulating material PA
Insulating material group I
CTI according to IEC 60112 600
Flammability rating according to UL 94 V0
Glow wire flammability index GWFI according to EN 60695-2-12 850
Glow wire ignition temperature GWIT according to EN 60695-2-13 775
Temperature for the ball pressure test according to EN 60695-10-2 125 °C
Material data – actuating element
Insulating material PBT
Insulating material group I
CTI according to IEC 60112 600
Flammability rating according to UL 94 V0
Dimensions
Pitch 3.5 mm
Width [w] 21.1 mm
Height [h] 7.8 mm
Length [l] 24.6 mm
Mounting
Connection method Push-in spring connection
Mechanical tests
Conductor connection
Specification IEC 60999-1:1999-11
Result Test passed
Test for conductor damage and slackening
Specification IEC 60999-1:1999-11
Result Test passed
Repeated connection and disconnection
Specification IEC 60999-1:1999-11
Result Test passed
Pull-out test
Specification IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
Result Test passed
No. of cycles 25
Insertion strength per pos. approx. 5 N
Withdraw strength per pos. approx. 4 N
Resistance of inscriptions
Specification IEC 60068-2-70:1995-12
Result Test passed
Polarization and coding
Specification IEC 60512-13-5:2006-02
Result Test passed
Visual inspection
Specification IEC 60512-1-1:2002-02
Result Test passed
Dimension check
Specification IEC 60512-1-2:2002-02
Result Test passed
Environmental and real-life conditions
Vibration test
Specification IEC 60068-2-6:2007-12
Frequency 10 – 150 – 10 Hz
Sweep speed 1 octave/min
Amplitude 0.35 mm (10 Hz … 60.1 Hz)
Sweep speed 5g (60.1 Hz … 150 Hz)
Test duration per axis 2.5 h
Durability test
Specification IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level 2.95 kV
Contact resistance R1 2.7 mΩ
Contact resistance R2 2.8 mΩ
Insertion/withdrawal cycles 25
Insulation resistance, neighboring positions > 5 MΩ
Climatic test
Specification ISO 6988:1985-02
Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress 100 °C/168 h
Power-frequency withstand voltage 1.39 kV
Ambient conditions
Ambient temperature (operation) -40 °C … 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport) -40 °C … 70 °C
Relative humidity (storage/transport) 30 % … 70 %
Ambient temperature (assembly) -5 °C … 100 °C
Electrical tests
Thermal test | Test group C
Specification IEC 60512-5-1:2002-02
Tested number of positions 12
Insulation resistance
Specification IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions > 5 MΩ
Temperature cycles
Specification IEC 60999-1:1999-11
Result Test passed
Air clearances and creepage distances |
Specification IEC 60664-1:2007-04
Insulating material group I
Comparative tracking index (IEC 60112) CTI 600
Rated insulation voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
minimum clearance value – non-homogenous field (III/3) 1.5 mm
minimum creepage distance (III/3) 2 mm
Rated insulation voltage (III/2) 160 V
Rated surge voltage (III/2) 2.5 kV
minimum clearance value – non-homogenous field (III/2) 1.5 mm
minimum creepage distance (III/2) 1.5 mm
Rated insulation voltage (II/2) 320 V
Rated surge voltage (II/2) 2.5 kV
minimum clearance value – non-homogenous field (II/2) 1.5 mm
minimum creepage distance (II/2) 1.6 mm
Muut tiedot
Tuotenumero 1844138
Pakkausyksikkö 50 Kappaletta
Tuoteavain AABFIC
Tuotekoodi AABFIC
GTIN 4046356947480
Paino kappaletta kohti (sis. pakkauksen) 3,304 g
Paino kappaletta kohti (ilman pakkausta) 3,29 g
Tullitariffinumero 85366990
Alkuperämaa SK
