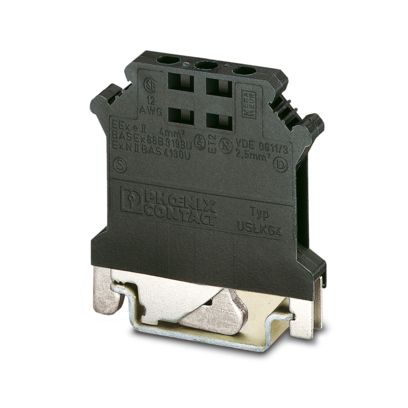

Reference potential terminal block

Tekniset tiedot

Notes

General When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V

Product properties

Product type Ground terminal block
Number of positions 1
Number of connections 2
Number of rows 1

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 0 W

Dimensions

Width 6.2 mm
Height 42.5 mm
Depth on NS 32 52 mm
Depth on NS 35/7,5 47 mm
Depth on NS 35/15 54.5 mm

Material specifications

Color black
Flammability rating according to UL 94 V2
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 2798789
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1221
Tuotekoodi BE1221
GTIN 4017918073893
Paino kappaletta kohti (sis. pakkauksen) 22,29 g
Paino kappaletta kohti (ilman pakkausta) 21,86 g
Tullitariffinumero 85369010
Alkuperämaa TR
