Tekniset tiedot
Notes
Utilization restriction
EMC note EMC: class A product, see manufacturer’s declaration in the download area
Product properties

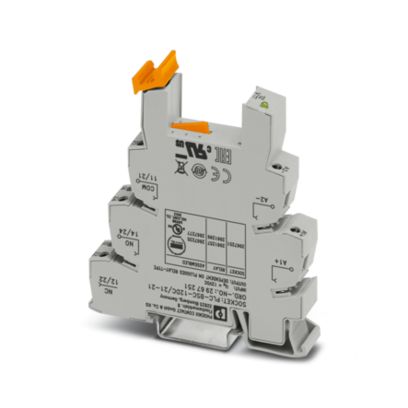

Product type Relay socket
Product family PLC-INTERFACE
Set comprises 2967235 PLC-RSC- 12DC/21-21
2967277 PLC-RSC- 12DC/21-21AU
Application Universal
Operating mode 100% operating factor
Compatible components Miniature relay, REL-MR-12DC/21-21AU, REL-MR-12DC/21-21
Insulation characteristics
Pollution degree 3
Input data
Nominal input voltage UN 12 V DC
Protective circuit Freewheeling diode
Output data
Compatible components Miniature relay, REL-MR-12DC/21-21AU, REL-MR-12DC/21-21
Connection data
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.14 mm² … 2.5 mm²
Conductor cross section flexible 0.14 mm² … 2.5 mm²
0.2 mm² … 2.5 mm² (Single ferrule)
2x 0.5 mm² … 1.5 mm² (TWIN ferrule)
Conductor cross section AWG 26 … 14
Tightening torque 0.6 Nm … 0.8 Nm
Signaling
Status display LED
Dimensions
Width 14 mm
Height 80 mm
Depth 94 mm
Material specifications
Color gray (RAL 7042)
Flammability rating according to UL 94 V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -40 °C … 60 °C
Ambient temperature (storage/transport) -40 °C … 85 °C
Approvals
CE
Certificate CE-compliant
UKCA
Certificate UKCA-compliant
Shipbuilding approval
Certificate TAE0000196
Corrosive gas test
Identification ISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
Temperature D
Humidity A
Vibration B/C
EMC B
Enclosure Required protection according to the Rules shall be provided upon installation on board
EMC data
Low Voltage Directive Conformance with Low Voltage Directive
Electromagnetic compatibility Conformance with EMC directive
Mounting
Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any
Muut tiedot
Tuotenumero 2967251
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK6212
Tuotekoodi CK6212
GTIN 4017918163488
Paino kappaletta kohti (sis. pakkauksen) 63,48 g
Paino kappaletta kohti (ilman pakkausta) 55,8 g
Tullitariffinumero 85366990
Alkuperämaa DE
