Tekniset tiedot
Notes
General Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC… or FBST 500….
Product properties

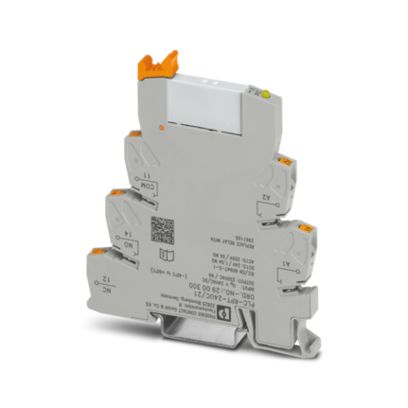

Product type Relay Module
Product family PLC-INTERFACE
Application Universal
Operating mode 100% operating factor
Mechanical service life 2x 107 cycles
Electrical properties
Maximum power dissipation for nominal condition 0.26 W
Test voltage (Winding/contact) 4 kV AC (50 Hz, 1 min., winding/contact)
Insulation characteristics: Coil/contact
Rated insulation voltage 250 V
Rated impulse withstand voltage 6 kV
Overvoltage category III
Degree of pollution 3
Input data
Coil side
Nominal input voltage UN 24 V AC/DC
Input voltage range 19.4 V AC/DC … 33.6 V AC/DC (20 °C)
Drive and function monostable
Drive (polarity) polarized
Typical input current at UN 11 mA (at UN = 24 V AC)
8.5 mA (at UN = 24 V DC)
Typical response time 6 ms
Typical release time 15 ms
Protective circuit Bridge rectifier; Bridge rectifier
Operating voltage display Yellow LED
Output data
Switching
Contact switching type 1 changeover contact
Type of switch contact Single contact
Contact material AgSnO
Maximum switching voltage 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC… or …FBST 500…)
Minimum switching voltage 5 V (100 mA)
Limiting continuous current 6 A
Maximum inrush current 10 A (4 s)
Min. switching current 10 mA (12 V)
Short-circuit current 200 A (conditional short-circuit current)
Interrupting rating (ohmic load) max. 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Output fuse 4 A gL/gG NEOZED
Switching capacity 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15)
Connection data
Connection method Push-in connection
Stripping length 10 mm
Conductor cross section rigid 0.14 mm² … 2.5 mm²
Conductor cross section flexible 0.14 mm² … 2.5 mm²
0.2 mm² … 2.5 mm² (Single ferrule)
2x 0.5 mm² … 1 mm² (TWIN ferrule)
Conductor cross section AWG 26 … 14
Dimensions
Width 6.2 mm
Height 80 mm
Depth 94 mm
Material specifications
Color gray (RAL 7042)
Flammability rating according to UL 94 V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay) RT III (Relay)
Degree of protection (Relay base) IP20 (Relay base)
Ambient temperature (operation) -40 °C … 60 °C
Ambient temperature (storage/transport) -40 °C … 85 °C
Approvals
CE
Certificate CE-compliant
UKCA
Certificate UKCA-compliant
Shipbuilding approval
Certificate TAE0000196
Corrosive gas test
Identification ISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
Temperature D
Humidity A
Vibration B/C
EMC B
Enclosure Required protection according to the Rules shall be provided upon installation on board
EMC data
Low Voltage Directive Conformance with Low Voltage Directive
Electromagnetic compatibility Conformance with EMC directive
Standards and regulations
Standards/regulations IEC 60947-5-1
Mounting
Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any
Muut tiedot
Tuotenumero 2900300
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK623A
Tuotekoodi CK623A
GTIN 4046356509008
Paino kappaletta kohti (sis. pakkauksen) 35,97 g
Paino kappaletta kohti (ilman pakkausta) 31,27 g
Tullitariffinumero 85364190
Alkuperämaa DE
