Tekniset tiedot
Notes
General FBS 2-6… plug-in bridge for the input side (A2) and FBS-2-8… plug-in bridge for the output side (11/21)
Product properties

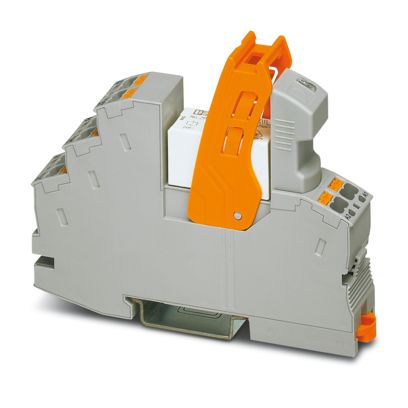

Product type Relay Module
Product family RIFLINE complete
Application Universal
Operating mode 100% operating factor
Mechanical service life approx. 3x 107 cycles
Insulation characteristics
Insulation Safe isolation between input and output
Basic insulation between the changeover contacts
Insulation characteristics
Insulation Safe isolation between input and output
Basic insulation between the changeover contacts
Overvoltage category III
Pollution degree 2
Electrical properties
Service life electrical see diagram
Maximum power dissipation for nominal condition 0.43 W
Test voltage (Winding/contact) 4 kVrms (50 Hz, 1 min., winding/contact)
Test voltage (Changeover contact/changeover contact) 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact)
Rated insulation voltage 250 V AC
Rated surge voltage 6 kV (Input/output)
4 kV (between the changeover contacts)
Dimensions
Drill hole
Diameter 3.2 mm
Width 16 mm
Height 96 mm
Depth 75 mm
Material specifications
Color gray (RAL 7042)
Flammability rating according to UL 94 V2 (Housing)
Muut tiedot
Tuotenumero 2903334
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK6529
Tuotekoodi CK6529
GTIN 4046356732277
Paino kappaletta kohti (sis. pakkauksen) 69,38 g
Paino kappaletta kohti (ilman pakkausta) 64 g
Tullitariffinumero 85364110
Alkuperämaa DE
