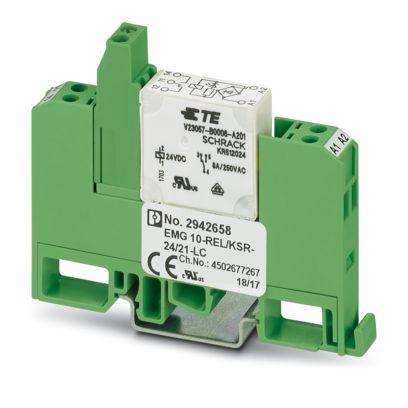

Relay Module

Tekniset tiedot

Notes

Utilization restriction
EMC note EMC: class A product, see manufacturer’s declaration in the download area

Product properties

Product type Relay Module
Product family EMG
Application Universal
Operating mode 100% operating factor
Mechanical service life approx. 2x 107 cycles

Insulation characteristics
Insulation Basic insulation

Insulation characteristics
Insulation Basic insulation
Overvoltage category III
Pollution degree 2

Electrical properties

Maximum power dissipation for nominal condition 0.5 W
Test voltage (Winding/contact) 4 kV AC (50 Hz, 1 min., winding/contact)

Input data

Coil side
Nominal input voltage UN 24 V AC/DC
Input voltage range 21.6 V AC/DC … 26.4 V AC/DC (20 °C)
Drive and function monostable
Drive (polarity) polarized
Typical input current at UN 21 mA
Typical response time 7 ms
Typical release time 11 ms
Protective circuit Bridge rectifier; Bridge rectifier
Operating voltage display Yellow LED

Output data

Switching
Contact switching type 1 changeover contact
Type of switch contact Single contact
Contact material AgNi
Maximum switching voltage 250 V AC/DC
Limiting continuous current 6 A
Maximum inrush current 8 A
Interrupting rating (ohmic load) max. 140 W (at 24 V DC)
53 W (at 48 V DC)
45 W (at 60 V DC)
35 W (at 110 V DC)
55 W (at 220 V DC)
1500 VA (for 250 V AC)

Connection data

Coil side
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.2 mm² … 4 mm²
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 24 … 12

Contact side
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.2 mm² … 4 mm²
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 24 … 12

Dimensions

Width 10.6 mm
Height 75 mm
Depth 62.5 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -20 °C … 40 °C
Ambient temperature (storage/transport) -20 °C … 70 °C

Standards and regulations

Standards/regulations IEC 60664
EN 50178

Mounting

Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any

Muut tiedot

Tuotenumero 2942658
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK6142
Tuotekoodi CK6142
GTIN 4017918080808
Paino kappaletta kohti (sis. pakkauksen) 41,29 g
Paino kappaletta kohti (ilman pakkausta) 40,83 g
Tullitariffinumero 85364190
Alkuperämaa DE
