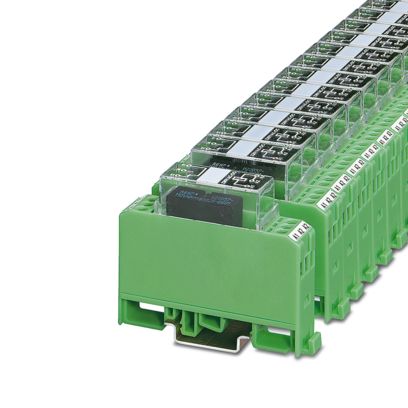

Relay Module

Tekniset tiedot

Notes

Utilization restriction
EMC note EMC: class A product, see manufacturer’s declaration in the download area

Product properties

Product type Relay Module
Operating mode 100% operating factor
Mechanical service life 2x 107 cycles

Insulation characteristics
Insulation Basic insulation

Insulation characteristics
Insulation Basic insulation
Overvoltage category III
Pollution degree 2

Electrical properties

Maximum power dissipation for nominal condition 1.15 W
Test voltage (Winding/contact) 2.5 kV AC (50 Hz, 1 min., winding/contact)

Input data

Coil side
Nominal input voltage UN 230 V AC/DC
Input voltage range 184 V AC/DC … 243.8 V AC/DC (20 °C)
Drive and function monostable
Drive (polarity) polarized
Typical input current at UN 5 mA
Typical response time 7 ms
Typical release time 11 ms
Protective circuit Bridge rectifier; Bridge rectifier
Operating voltage display Yellow LED

Output data

Switching
Contact switching type 1 changeover contact
Type of switch contact Double contact
Contact material AgPd60 5 µm hard gold-plated
Maximum switching voltage 30 V AC
36 V DC
Limiting continuous current 0.5 A
Maximum inrush current 0.2 A
Interrupting rating (ohmic load) max. 5 W (at 24 V DC)

Switching: when the gold layer is destroyed
Note the following values are applicable if a gold layer is destroyed
Maximum switching voltage 125 V AC
Minimum switching voltage 150 V DC
Limiting continuous current 2 A
Maximum inrush current 2 A
Interrupting rating (ohmic load) max. 29 W (at 24 V DC)
29 W (at 48 V DC)
29 W (at 60 V DC)

Connection data

Coil side
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.2 mm² … 4 mm²
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 24 … 12

Contact side
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section rigid 0.2 mm² … 4 mm²
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 24 … 12

Dimensions

Width 17.5 mm
Height 75 mm
Depth 62.5 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation) -20 °C … 50 °C
Ambient temperature (storage/transport) -20 °C … 70 °C

Standards and regulations

Standards/regulations IEC 664
IEC 664 A
DIN VDE 0110

Mounting

Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any

Muut tiedot

Tuotenumero 2944520
Pakkausyksikkö 10 Kappaletta
Tuoteavain CK6141
Tuotekoodi CK6141
GTIN 4017918081621
Paino kappaletta kohti (sis. pakkauksen) 55 g
Paino kappaletta kohti (ilman pakkausta) 55 g
Tullitariffinumero 85364900
Alkuperämaa DE
