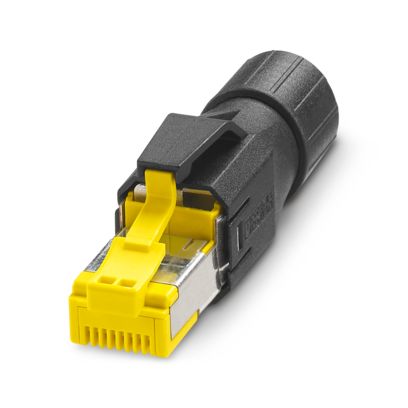

RJ45 connector
RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet
Tekniset tiedot
Product properties
Type RJ45
Product type Data connector (cable side)
Sensor type Ethernet
Number of positions 8
No. of cable outlets 1
Type RJ45
Shielded yes
Cable outlet straight
Positions/contacts 8P8C
Insulation characteristics
Overvoltage category I
Degree of pollution 2
Electrical properties
Rated voltage (III/3) 72 V (DC)
Rated current 1.75 A
Contact resistance < 20 mΩ (Contact)
< 100 mΩ (shield)
Frequency range to 500 MHz
Insulation resistance > 500 MΩ
Nominal voltage UN 48 V
Nominal current IN 1.75 A
Contact resistance per contact pair < 20 Ω
Contact resistance > 10 mΩ (Wire – IDC)
0.005 Ω (Litz wires – IDC)
Transmission medium Copper
Transmission characteristics (category) CAT6A
Transmission speed 10 Gbps
Wave impedance 100 Ω
Dimensions
Width 13.8 mm
Height 17.3 mm
Length 55.5 mm
Material specifications
Color black
Flammability rating according to UL 94 V2
Contact material CuSn
Contact surface material Au/Ni
Contact carrier material PC
Locking latch material PC
Material for screw connection PA
Housing material Plastic
Muut tiedot
Tuotenumero 1419001
Pakkausyksikkö 1 Kappaletta
Tuoteavain ABNAAE
Tuotekoodi ABNAAE
GTIN 4046356521567
Paino kappaletta kohti (sis. pakkauksen) 12,3 g
Paino kappaletta kohti (ilman pakkausta) 12,16 g
Tullitariffinumero 85366990
Alkuperämaa DE
| Väri | musta |
|---|
