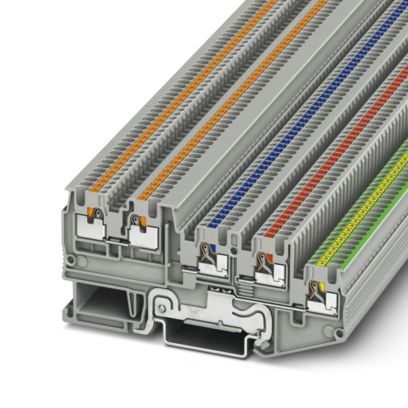

Sensor/actuator terminal block
Sensor/actuator terminal block, with protective conductor function, nom. voltage: 250 V, nominal current: 13.5 A, connection method: Push-in connection, number of connections: 5, cross section: 0.14 mm² – 1.5 mm², AWG: 26 – 14, width: 3.5 mm, height: 40 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Product properties
Product type Sensor/actuator terminal block
Number of connections 5
Number of rows 4
Potentials 4
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 0.56 W
Dimensions
Width 3.5 mm
End cover width 2.2 mm
Height 90.8 mm
Depth 40 mm
Depth on NS 35/7,5 41.5 mm
Depth on NS 35/15 48.5 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3244465
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2218
Tuotekoodi BE2218
GTIN 4046356735889
Paino kappaletta kohti (sis. pakkauksen) 10,709 g
Paino kappaletta kohti (ilman pakkausta) 9,74 g
Tullitariffinumero 85369010
Alkuperämaa PL
| Väri | harmaa |
|---|
