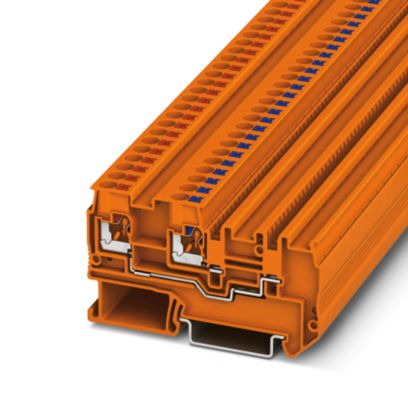

Sensor/actuator terminal block
Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 20 A, connection method: Push-in connection, number of connections: 2, cross section: 0.2 mm² – 4 mm², AWG: 24 – 12, width: 7 mm, color: orange, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Product properties
Product type Sensor/actuator terminal block
Number of connections 2
Number of rows 2
Potentials 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 0.77 W
Dimensions
Width 7 mm
End cover width 2.2 mm
Height 74.4 mm
Depth on NS 35/7,5 41.5 mm
Depth on NS 35/15 49 mm
Material specifications
Color orange
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 3244559
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2217
Tuotekoodi BE2217
GTIN 4046356735902
Paino kappaletta kohti (sis. pakkauksen) 11,5 g
Paino kappaletta kohti (ilman pakkausta) 11,5 g
Tullitariffinumero 85369010
Alkuperämaa PL
