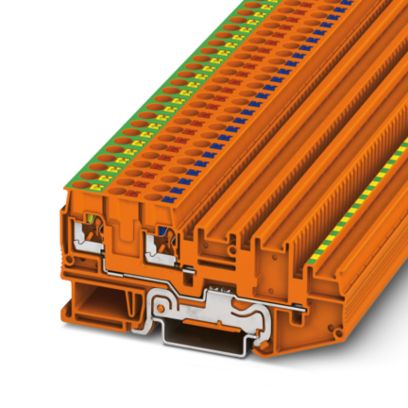

Sensor/actuator terminal block
Sensor/actuator terminal block, with protective conductor function, nom. voltage: 250 V, nominal current: 20 A, connection method: Push-in connection, number of connections: 3, cross section: 0.2 mm² – 4 mm², AWG: 24 – 12, width: 7 mm, color: orange, mounting type: NS 35/7,5, NS 35/15
Tekniset tiedot
Product properties
Product type Sensor/actuator terminal block
Number of connections 3
Number of rows 4
Potentials 3
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 0.77 W
Dimensions
Width 7 mm
End cover width 2.2 mm
Height 90.8 mm
Depth on NS 35/7,5 41.5 mm
Depth on NS 35/15 49 mm
Material specifications
Color orange
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Muut tiedot
Tuotenumero 3244481
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2218
Tuotekoodi BE2218
GTIN 4046356735896
Paino kappaletta kohti (sis. pakkauksen) 18,374 g
Paino kappaletta kohti (ilman pakkausta) 18 g
Tullitariffinumero 85369010
Alkuperämaa PL
