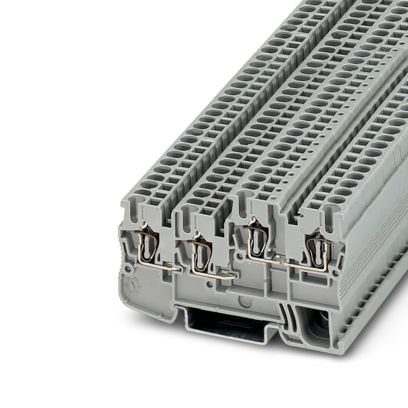

Sensor/actuator terminal block

Tekniset tiedot

Product properties

Product type Sensor/actuator terminal block
Number of connections 4
Number of rows 2

Insulation characteristics
Overvoltage category III
Degree of pollution 3

Electrical properties

Rated surge voltage 4 kV
Maximum power dissipation for nominal condition 0.77 W

Dimensions

Width 5.2 mm
End cover width 2.2 mm
Height 75 mm
Depth on NS 35/7,5 44.5 mm
Depth on NS 35/15 52 mm

Material specifications

Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Muut tiedot

Tuotenumero 3209015
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE2117
Tuotekoodi BE2117
GTIN 4046356143325
Paino kappaletta kohti (sis. pakkauksen) 9,76 g
Paino kappaletta kohti (ilman pakkausta) 9,2 g
Tullitariffinumero 85369010
Alkuperämaa TR
