Socket

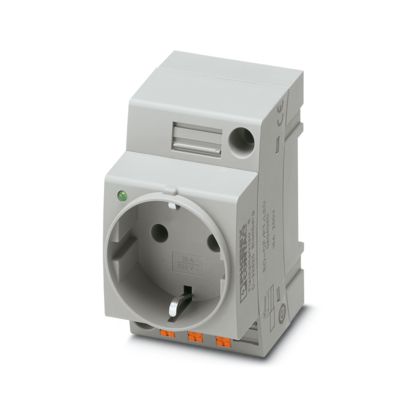

Socket, Pin connector pattern type CF, Push-in spring connection, Light indicator, gray, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, VDE 0620-1
Tekniset tiedot
Product properties
Product type Socket
Country ID Germany
Electrical properties
Nominal voltage UN 250 V AC (50 Hz)
Nominal current IN 16 A
Connection data
Connection method Push-in spring connection
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section rigid 0.2 mm² … 4 mm²
Cross section AWG 24 … 12
Signaling
Status display Yes
Dimensions
Width 45 mm
Height 75 mm
Depth 75 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material PA
Contact material CuZn37
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Connector
Type of plug Pin connector pattern type CF
Environmental and real-life conditions
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -20 °C … 60 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport) 30 % … 70 %
Standards and regulations
Standards
Standards/regulations VDE 0620-1
Mounting
Mounting type for mounting on a DIN rail in the service interface or direct mounting
Connection method Push-in spring connection
Muut tiedot
Tuotenumero 0804040
Pakkausyksikkö 5 Kappaletta
Tuoteavain BE7621
Tuotekoodi BE7621
GTIN 4055626225807
Paino kappaletta kohti (sis. pakkauksen) 73,29 g
Paino kappaletta kohti (ilman pakkausta) 73 g
Tullitariffinumero 85366990
Alkuperämaa PL
