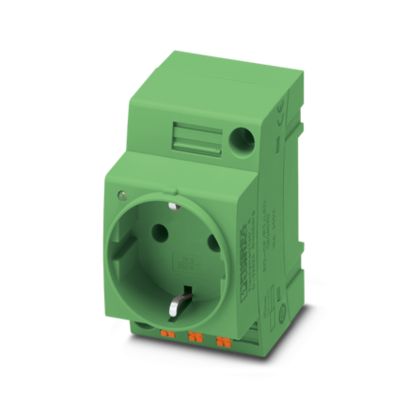

Socket

Tekniset tiedot

Product properties

Product type Socket
Country ID Germany

Electrical properties

Nominal voltage UN 250 V AC (50 Hz)
Nominal current IN 16 A

Connection data

Connection method Push-in spring connection
Conductor cross section flexible 0.2 mm² … 2.5 mm²
Conductor cross section rigid 0.2 mm² … 4 mm²
Cross section AWG 24 … 12

Signaling

Status display Yes

Dimensions

Width 45 mm
Height 75 mm
Depth 75 mm

Material specifications

Color green
Flammability rating according to UL 94 V0
Insulating material PA
Contact material CuZn37
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed

Connector

Type of plug Pin connector pattern type CF

Environmental and real-life conditions

Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -20 °C … 60 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport) 30 % … 70 %

Standards and regulations

Standards
Standards/regulations VDE 0620-1

Mounting

Mounting type for mounting on a DIN rail in the service interface or direct mounting
Connection method Push-in spring connection

Muut tiedot

Tuotenumero 0804041
Pakkausyksikkö 5 Kappaletta
Tuoteavain BE7621
Tuotekoodi BE7621
GTIN 4055626225814
Paino kappaletta kohti (sis. pakkauksen) 72,84 g
Paino kappaletta kohti (ilman pakkausta) 72,84 g
Tullitariffinumero 85366990
Alkuperämaa PL
