Tekniset tiedot
Product properties

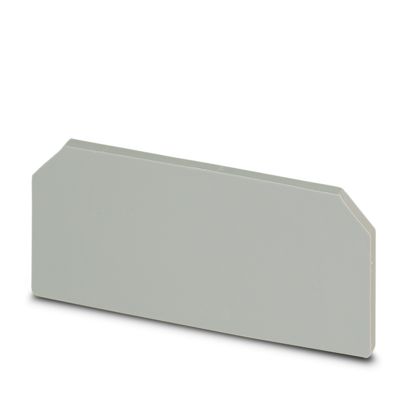

Product type Partition plate
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
Material specifications
Color gray
Material PA
Flammability rating according to UL 94 V0
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Dimensions
Width 2.5 mm
Height 56 mm
Depth 25 mm
Muut tiedot
Tuotenumero 2770794
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1Z1X
Tuotekoodi BE1Z1X
GTIN 4017918068035
Paino kappaletta kohti (sis. pakkauksen) 2,059 g
Paino kappaletta kohti (ilman pakkausta) 2,05 g
Tullitariffinumero 39269097
Alkuperämaa DE
| Väri | harmaa |
|---|
