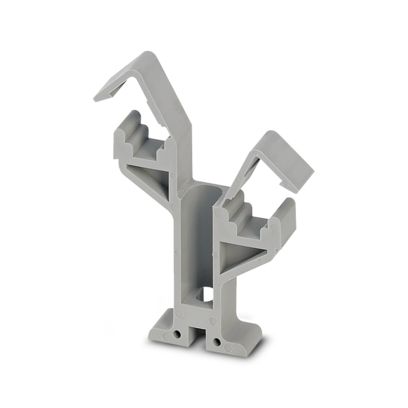

Double support bracket, insulating material, optionally for use with 3 mm x 10 mm or 6 mm x 6 mm busbar, height: 48 mm
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 125 °C
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) Passed
Specific optical density of smoke NFPA 130 (ASTM E 662) Passed
Smoke gas toxicity NFPA 130 (SMP 800C) Passed
Ambient temperature (operation) -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport) -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly) -5 °C … 70 °C
Ambient temperature (actuation) -5 °C … 70 °C
Permissible humidity (storage/transport) 30 % … 70 %
| Product type | Support |
|---|---|
| Nominal current IN | 0 A |
| Cross section AWG | (converted acc. to IEC) |
| Leveys | 10 mm |
| Pituus | 42 mm |
| Syvyys | 48 mm |
| Korkeus | 42 mm |
| Halkaisija | 4.5 mm |
| Väri | Harmaa |
| Materiaali | PA |
| Components | free from silicone and halogen |
| Mounting type | Direct mounting |
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values |
