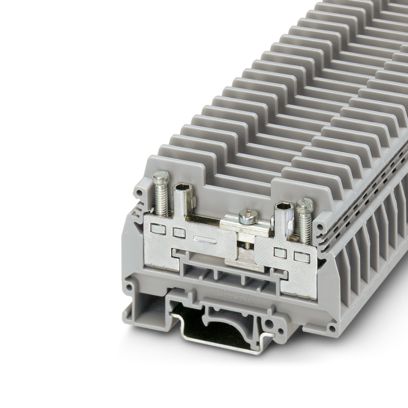

Test disconnect terminal block
Test disconnect terminal block, with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges, connection method: Screw connection, cross section: 0.5 mm² – 10 mm² , AWG: 20 – 10, width: 8.2 mm, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
Tekniset tiedot
Product properties
Product type Test disconnect terminal block
Number of connections 2
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Electrical properties
Rated surge voltage 6 kV
Maximum power dissipation for nominal condition 1.31 W
Dimensions
Width 8.2 mm
End cover width 2.2 mm
Height 72 mm
Depth on NS 32 56.5 mm
Depth on NS 35/7,5 51.5 mm
Depth on NS 35/15 59 mm
Material specifications
Color gray
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 – HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 – HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162) passed
Specific optical density of smoke NFPA 130 (ASTM E 662) passed
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Muut tiedot
Tuotenumero 0311087
Pakkausyksikkö 50 Kappaletta
Tuoteavain BE1233
Tuotekoodi BE1233
GTIN 4017918001292
Paino kappaletta kohti (sis. pakkauksen) 35,51 g
Paino kappaletta kohti (ilman pakkausta) 35,51 g
Tullitariffinumero 85369010
Alkuperämaa DE
| Väri | harmaa |
|---|
