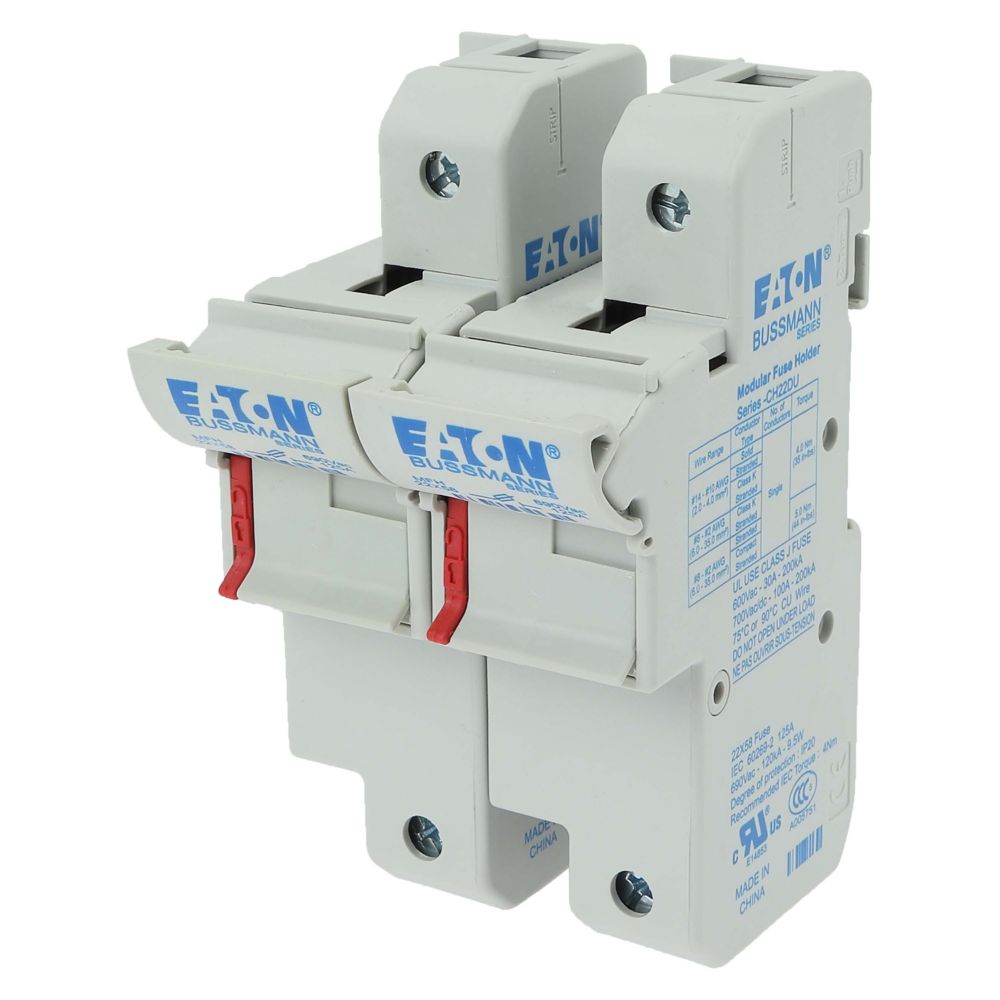

2 POLE 22X58 MFH

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton Bussmann series low voltage cylindrical fuse holder

CATALOG NUMBER
CH222DU

EAN
5027590497060

UPC
051712685399

PRODUCT LENGTH/DEPTH
77 mm

PRODUCT HEIGHT
123 mm

PRODUCT WIDTH
71 mm

PRODUCT WEIGHT
275 g

COMPLIANCES
CE Marked
RoHS Compliant

CERTIFICATIONS
IEC 60269-2
EAC
IEC 60269-1
UL Listed File E14853

TEKNISET TUOTETIEDOT

TYPE
fuse accessory

APPLICATION
Industrial and Commercial applications

AMPERAGE RATING
125 A

NUMBER OF POLES
Two-pole

WIDTH IN NUMBER OF MODULAR SPACINGS
3

BUILT-IN DEPTH
51.5 mm

FUSE SIZE
22 x 58 mm

OPERATING TEMPERATURE DETAILS
-20ºC to +70ºC

VOLTAGE RATING AT AC
690 V a.c. (IEC) and 700 V a.c. (UL)

VOLTAGE RATING AT DC
1000 V d.c. (IEC)

FUSE TYPE
C22G
C22M

USED WITH
C22G, C22M, FWP-(amps)A22F fuses

LOCKABLE
Yes

ACCESSORIES
JV-L Multipole connector kit, CH22-CTP IP20 Protection accessory

TORQUE RATING
Min 4 Nm/ Max 5 Nm

CONCURRENTLY SWITCHING N-NEUTRAL
No

MATERIAL
Polyester

OPTICAL DEFECT INDICATION
No

MOUNTING METHOD
DIN rail
2 x M4 Panel mounting screws

DEGREE OF PROTECTION
IP20

VOLTAGE RATING
690 V

MODEL
CH22
