Emergency stop/emergency switching off pushbutton,

GENERAL SPECIFICATIONS

PRODUCT NAME

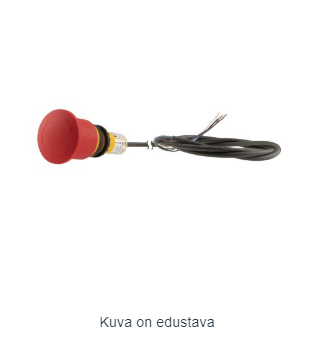

Eaton Moeller® series C22 Emergency stop/emergency switching off pushbutton

CATALOG NUMBER
185156

EAN
4015081806416

PRODUCT LENGTH/DEPTH
3597 mm

PRODUCT HEIGHT
45 mm

PRODUCT WIDTH
45 mm

PRODUCT WEIGHT
0.158 kg

CERTIFICATIONS
UL
VDE 0660
IEC/EN 60947-5-5
CSA
CE
CSA Class No.: 321103
CSA File No.: 165628
IEC/EN 60947-5-1
UL 508
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
CSA-C22.2 No. 94.2-07
CE marking
UL File No.: E340491

CATALOG NOTES
Contacts with safety function, by positive opening to IEC/EN 60947-5-1

TEKNISET TUOTETIEDOT

TYPE
Controlled stop pushbutton/emergency-stop button

ACTUATOR COLOR
Red

FEATURES
Tamper-proof (according to ISO 13850, EN 418)
Positive opening

ACTUATOR FUNCTION
Turn-to-release

OPERATING FREQUENCY
300 Operations/h

POLLUTION DEGREE
3

CLIMATIC PROOFING
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

CONNECTION TO SMARTWIRE-DT
No

RATED IMPULSE WITHSTAND VOLTAGE (UIMP)
800 V AC

ILLUMINATION
Non-illuminated

CABLE MATERIAL
PUR

BASE COLOR
Yellow

ACTUATING FORCE
50 N

ACTUATOR DIAMETER
45 mm

ACTUATOR TRAVEL AND ACTUATION FORCE (DIN EN 60947-5-1)
4.65 mm

AMBIENT OPERATING TEMPERATURE – MAX
70 °C

AMBIENT OPERATING TEMPERATURE – MIN
-30 °C

DIAMETER CAP
45 mm

FORCE FOR POSITIVE OPENING – MIN
30 N

KNOB TRAVEL
5.7 mm

LAMP VOLTAGE – MAX
0 V

NUMBER OF CONTACTS (NORMALLY CLOSED CONTACTS)
2

NUMBER OF CONTACTS (NORMALLY OPEN CONTACTS)
0

DESIGN
Palm-tree shaped
Classical

MOUNTING POSITION
As required

RATED CONDITIONAL SHORT-CIRCUIT CURRENT (IQ)
1 kA

CONNECTION TYPE
Cable (black) with non-terminated end, 4 pole

MOUNTING METHOD
Built-in

CABLE LENGTH
3.5 m

OVERVOLTAGE CATEGORY
III

CONTROL CIRCUIT RELIABILITY
1 failure per 900,000 switching operations statistically determined, at 17 V DC/7 mA: N/C contact)

CONNECTION TYPE (AUXILIARY CIRCUIT)
Other

DEGREE OF PROTECTION
NEMA 4X, 13
IP67/IP69K

SHOCK RESISTANCE
30 g, Mechanical, Shock duration 11 ms

UNLOCKING METHOD
Turn-release

SHORT-CIRCUIT PROTECTION RATING
Max. 4 A gG/gL, Fuse, Contacts

OPENING DIAMETER
22.5 mm

RATED INSULATION VOLTAGE (UI)
250 V

RATED OPERATIONAL CURRENT (IE) AT AC-15, 24 V
4 A

RATED OPERATIONAL CURRENT (IE) AT DC-13, 24 V
3 A

PRODUCT CATEGORY
RMQ compact solution

AMBIENT STORAGE TEMPERATURE – MAX
80 °C

AMBIENT STORAGE TEMPERATURE – MIN
-30 °C

TIGHTENING TORQUE
2 Nm, Threaded ring
