Tekniset tiedot
Product properties

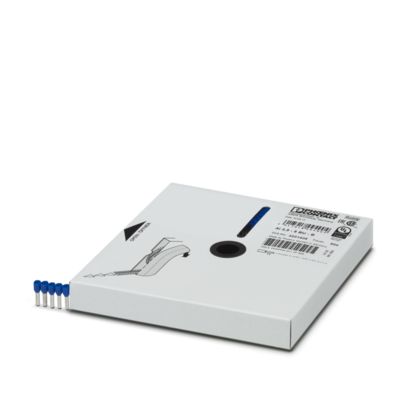

Product type Cable end sleeve
Conductor category stranded conductors, class 2, 5, 6 / B, C, K, M
Connection data
Conductor connection
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG max. 14
Stripping length 11 mm
Dimensions
Sleeve length 8 mm
Maximum stripping length 11 mm
Ferrule diameter 2.3 mm
Sleeve wall thickness 0.15 mm
Insulating collar thickness 0.3 mm
Inner dimensions of the insulating collar 4.2 mm
Material specifications
Color blue
Material CU-DHP
Flammability rating according to UL 94 HB
Coating tin-plated (galvanic)
Components free from silicone and halogen
Mechanical properties
Technical data
Sleeve length 8 mm
Environmental and real-life conditions
Ambient conditions
Permanent temperature 105 °C (-40 °C no load / 0 °C dynamic load)
Short-term temperature 120 °C
Muut tiedot
Tuotenumero 3201408
Pakkausyksikkö 500 Kappaletta
Tuoteavain BH3414
Tuotekoodi BH3414
GTIN 4017918094904
Paino kappaletta kohti (sis. pakkauksen) 0,237 g
Paino kappaletta kohti (ilman pakkausta) 0,1 g
Tullitariffinumero 85369010
Alkuperämaa DE
| Väri | Sininen |
|---|---|
| Materiaali | CU-DHP |
| Product type | Cable end sleeve |
