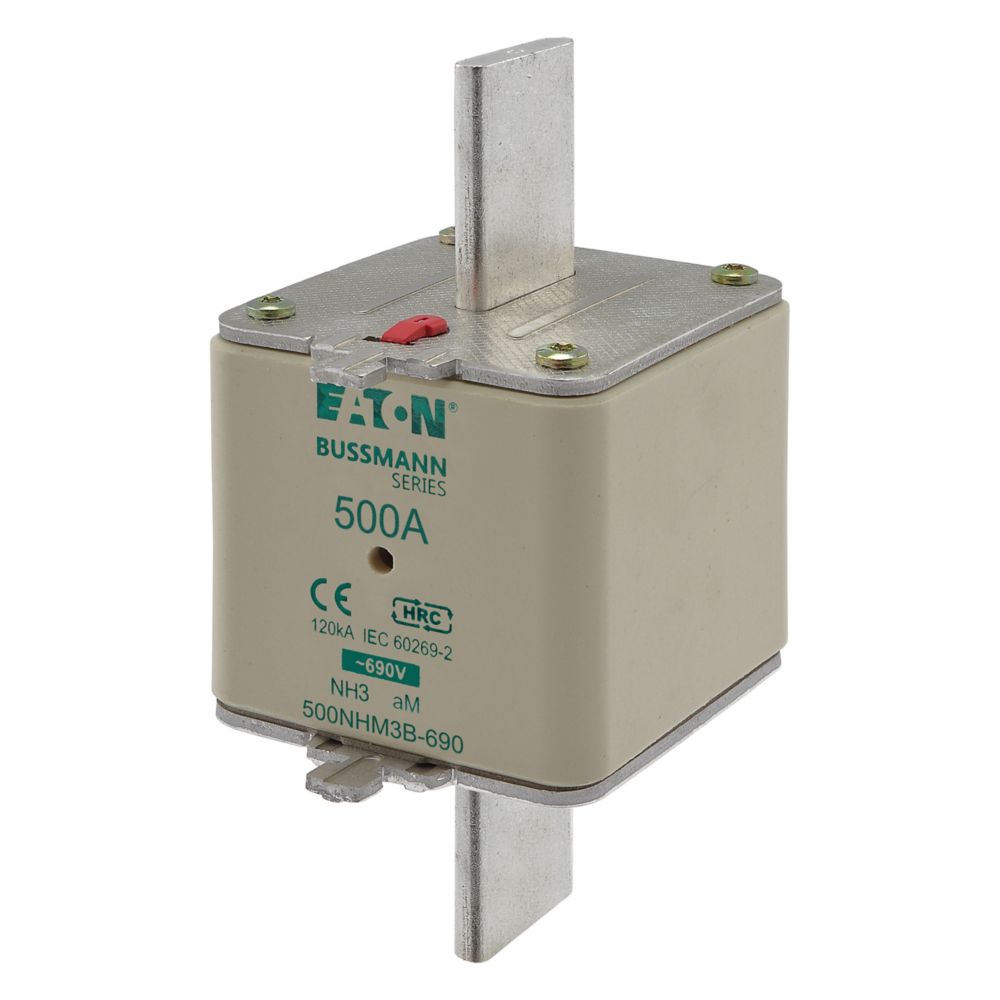

NH FUSE 500AMP 690V AM SIZE 3 DUAL IND.

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton Bussmann series low voltage NH Fuse

CATALOG NUMBER
500NHM3B-690

EAN
5027590482820

PRODUCT LENGTH/DEPTH
150 mm

PRODUCT HEIGHT
86 mm

PRODUCT WIDTH
72 mm

PRODUCT WEIGHT
1140 g

COMPLIANCES
CE Marked
RoHS Compliant

CERTIFICATIONS
IEC 60269-1
IEC 60269-2
DIN 43620

PRODUCT SPECIFICATIONS

TYPE
Fuse

APPLICATION
industrial
Utilities, Solar, Wind

AMPERAGE RATING
500 A

FITTED WITH:
Metal gripping lugs

FUSE SIZE
NH1

CURRENT TYPE
AC

BREAKING CAPACITY
120 kA

FREQUENCY RATING – MAX
62 Hz

FREQUENCY RATING – MIN
45 Hz

RATED SWITCHING CAPACITY
120 kA

RATED VOLTAGE AC
690 V

CLASS
Class gG/gL

FUSE TYPE
Square body with knife blade contact

ACCESSORY/SPARE PART TYPE
SDL-1 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit

UTILIZATION CATEGORY
aM (switchgear protection)

INTERRUPT RATING
120 kAIC

FUSE INDICATOR
Combination fuse status indicator

INSULATED METAL GRIPPING LUGS (IMGL)
No

WATT LOSSES
36 W

CONNECTION
Blade end

CONSTRUCTION
NH3

CONSTRUCTION SIZE
NH3

FUSE SHAPE
Square body
Knife blade contacts

VOLTAGE TYPE
AC

SUITABLE FOR
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

MATERIAL
Ceramic body

QUANTITY
3

VOLTAGE RATING
690 V

RATED SWITCHING CAPACITY AC
120 kA
