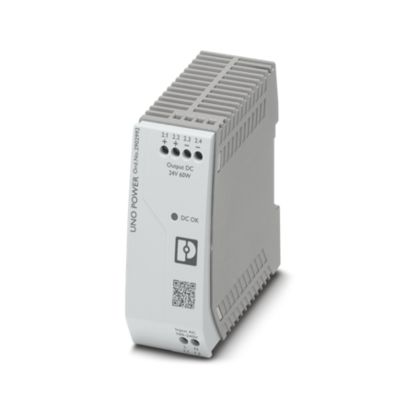

Power supply unit

UNO POWER power supplies with basic functionality
Thanks to their high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

Tekniset tiedot

Product properties

Product type Power supply
Product family UNO POWER
MTBF (IEC 61709, SN 29500) > 785000 h (40 °C)

Insulation characteristics
Protection class II (in closed control cabinet)
Degree of pollution 2

Electrical properties

Number of phases 1.00
Insulation voltage input/output 4 kV AC (type test)
3 kV AC (routine test)

Dimensions

Width 35 mm
Height 90 mm
Depth 84 mm

Installation dimensions
Installation distance right/left 0 mm / 0 mm
Installation distance top/bottom 30 mm / 30 mm

Material specifications

Flammability rating according to UL 94 (housing / terminal blocks) V0
Housing material Plastic
Type of housing Polycarbonate
Foot latch material POM (Polyoxymethylene)
Housing material Polycarbonate

Muut tiedot

Tuotenumero 2902992
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPU13
Tuotekoodi CMPU13
GTIN 4046356729208
Paino kappaletta kohti (sis. pakkauksen) 245 g
Paino kappaletta kohti (ilman pakkausta) 207 g
Tullitariffinumero 85044095
Alkuperämaa PL
