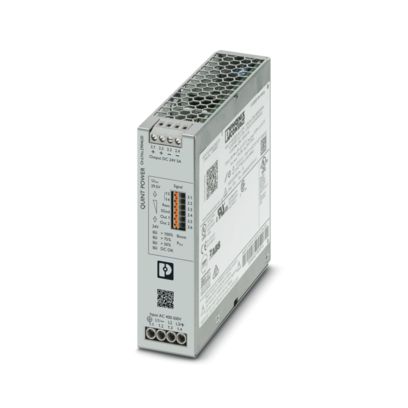

Power supply unit
QUINT POWER -virtalähde vapaavalintaisella lähtövirralla, SFB (selective fuse breaking) -teknologialla ja NFC-liitännällä, syöttö: 3-vaiheinen, lähtö: 24 V DC/5 A.
Tekniset tiedot
Product properties
Product type Power supply
Product family QUINT POWER
MTBF (IEC 61709, SN 29500) > 1560000 h (25 °C)
> 914000 h (40 °C)
> 413000 h (60 °C)
Environmental protection directive RoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection class I
Degree of pollution 2
Life expectancy (electrolytic capacitors)
Current 2.5 A
Temperature 40 °C
Time 262000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 2.5 A
Temperature 40 °C
Time 235000 h
Additional text 480 V AC
Life expectancy (electrolytic capacitors)
Current 5 A
Temperature 25 °C
Time 363000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 5 A
Temperature 25 °C
Time 327000 h
Additional text 480 V AC
Life expectancy (electrolytic capacitors)
Current 5 A
Temperature 40 °C
Time 128000 h
Additional text 400 V AC
Life expectancy (electrolytic capacitors)
Current 5 A
Temperature 40 °C
Time 115000 h
Additional text 480 V AC
Electrical properties
Number of phases 3.00
Insulation voltage input/output 4 kV AC (type test)
2.4 kV AC (routine test)
Insulation voltage output / PE 0.5 kV DC (type test)
0.5 kV DC (routine test)
Insulation voltage input / PE 3.5 kV AC (type test)
2.4 kV AC (routine test)
Switching frequency 85 kHz … 107 kHz (Auxiliary converter stage)
45 kHz … 200 kHz (Main converter stage)
Dimensions
Width 36 mm
Height 130 mm
Depth 125 mm
Installation dimensions
Installation distance right/left 5 mm / 5 mm
Installation distance top/bottom 50 mm / 50 mm
Alternative assembly
Width 122 mm
Height 130 mm
Depth 39 mm
Material specifications
Flammability rating according to UL 94 (housing / terminal blocks) V0
Housing material Metal
Hood version Stainless steel X6Cr17
Side element version Aluminum
Muut tiedot
Tuotenumero 2904620
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPI33
Tuotekoodi CMPI33
GTIN 4046356985369
Paino kappaletta kohti (sis. pakkauksen) 889 g
Paino kappaletta kohti (ilman pakkausta) 628 g
Tullitariffinumero 85044095
Alkuperämaa TH
