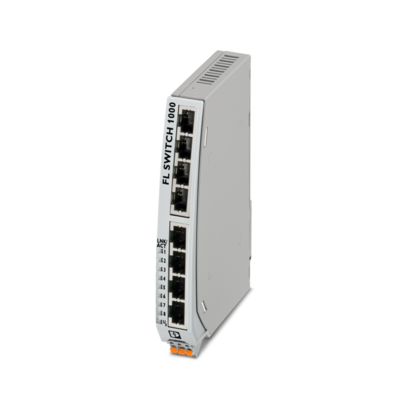

Tekniset tiedot
Dimensions
Width 22.5 mm
Height 140.4 mm
Depth 92.4 mm
Notes
Utilization restriction
EMC note EMC: class A product, see manufacturer’s declaration in the download area
Material specifications
Housing material Polycarbonate fiber reinforced
Aluminum / steel sheet DC01
Mounting
Mounting type DIN rail mounting
Interfaces
Ethernet (RJ45)
Number of interfaces 8
Connection method RJ45
Note on the connection method Auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Ethernet in RJ45 twisted pair
Transmission length 100 m (per segment)
Signal LEDs Data receive, link status
No. of channels 8 (RJ45 ports)
Product properties
Product type Switch
Product family Unmanaged Switch 1000
MTTF 133.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1254 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1203.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
Switch functions
Basic functions Unmanaged switch
Autonegotiation
Store and Forward switching mode
PROFINET conformance class Conformance-Class A
MAC address table 2k
Status and diagnostic indicators LEDs: US, link and activity per port
Additional functions 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3)
Security functions
Basic functions Unmanaged switch
Autonegotiation
Store and Forward switching mode
Electrical properties
Transmission medium Copper
Supply
Supply voltage (DC) 24 V
Supply voltage (AC) 24 V AC (50/60 Hz)
Supply voltage range 9 V DC … 32 V DC
18 V AC … 30 V AC (50/60 Hz)
Power supply connection Via COMBICON, max. conductor cross section 2.5 mm²
Residual ripple 3.6 VPP (within the permitted voltage range)
Max. current consumption 170 mA (at 9 V DC)
Typical current consumption 26 mA (at 24 V DC)
Connection data
Connection technology
Connection name Power supply
pluggable yes
Power supply
Connection method Push-in spring connection
Conductor cross section, rigid 0.2 mm² … 2.5 mm²
Conductor cross section, flexible 0.2 mm² … 2.5 mm²
Conductor cross section AWG 24 … 12
Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² … 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² … 2.5 mm²
Stripping length 10 mm
Environmental and real-life conditions
Ambient conditions
Degree of protection IP30
Ambient temperature (operation) -40 °C … 75 °C
Ambient temperature (storage/transport) -40 °C … 85 °C
Altitude 2000 m (maximum)
Permissible humidity (operation) 5 % … 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % … 95 % (non-condensing)
Shock (operation) 30g (EN 60068-2-27)
Vibration (operation) in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation) 79 kPa … 108 kPa up to 2000 m above mean sea level (Without derating)
Air pressure (storage/transport) 79 kPa … 108 kPa up to 2000 m above mean sea level (Without derating)
EMC data
Conformance with EMC directives EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A
Noise immunity EN 61000-6-2:2005
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Noise emission EN 61000-6-4:2007 + A1:2011
System properties
Functionality
Basic functions Unmanaged switch
Autonegotiation
Store and Forward switching mode
Signaling
Status display LEDs: US, link and activity per port
Muut tiedot
Tuotenumero 1085165
Pakkausyksikkö 1 Kappaletta
Tuoteavain DNN116
Tuotekoodi DNN116
GTIN 4055626834900
Paino kappaletta kohti (sis. pakkauksen) 353,5 g
Paino kappaletta kohti (ilman pakkausta) 264 g
Tullitariffinumero 85176200
Alkuperämaa TW
