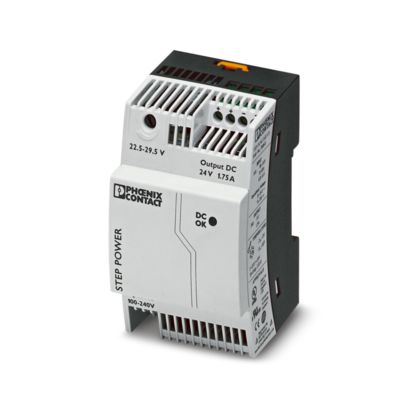

Power supply unit

STEP POWER power supplies for distribution boards
The STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.

Tekniset tiedot

Product properties

Product type Power supply
Product family STEP POWER
MTBF (IEC 61709, SN 29500) > 1569000 h (40 °C)

Insulation characteristics
Protection class II (in closed control cabinet)
Overvoltage category III
Degree of pollution 2

Electrical properties

Number of phases 1.00
Insulation voltage input/output 4 kV AC (type test)
3.75 kV AC (routine test)
Insulation voltage output / PE 500 V DC (routine test)
Insulation voltage input/output 3.75 kV AC (routine test)
4 kV AC (type test)
Insulation voltage input / PE 3.5 kV AC (type test)
2 kV AC (routine test)

Dimensions

Width 54 mm
Height 90 mm
Depth Device depth (DIN rail mounting) 55 mm (Device depth (DIN rail mounting))
Horizontal pitch 3 Div.

Installation dimensions
Installation distance right/left 0 mm / 0 mm
Installation distance top/bottom 30 mm / 30 mm

Material specifications

Housing material Plastic
Foot latch material POM (Polyoxymethylene)
Housing material Polycarbonate

Muut tiedot

Tuotenumero 2868648
Pakkausyksikkö 1 Kappaletta
Tuoteavain CMPS13
Tuotekoodi CMPS13
GTIN 4046356172844
Paino kappaletta kohti (sis. pakkauksen) 228,8 g
Paino kappaletta kohti (ilman pakkausta) 190 g
Tullitariffinumero 85044095
Alkuperämaa PL
