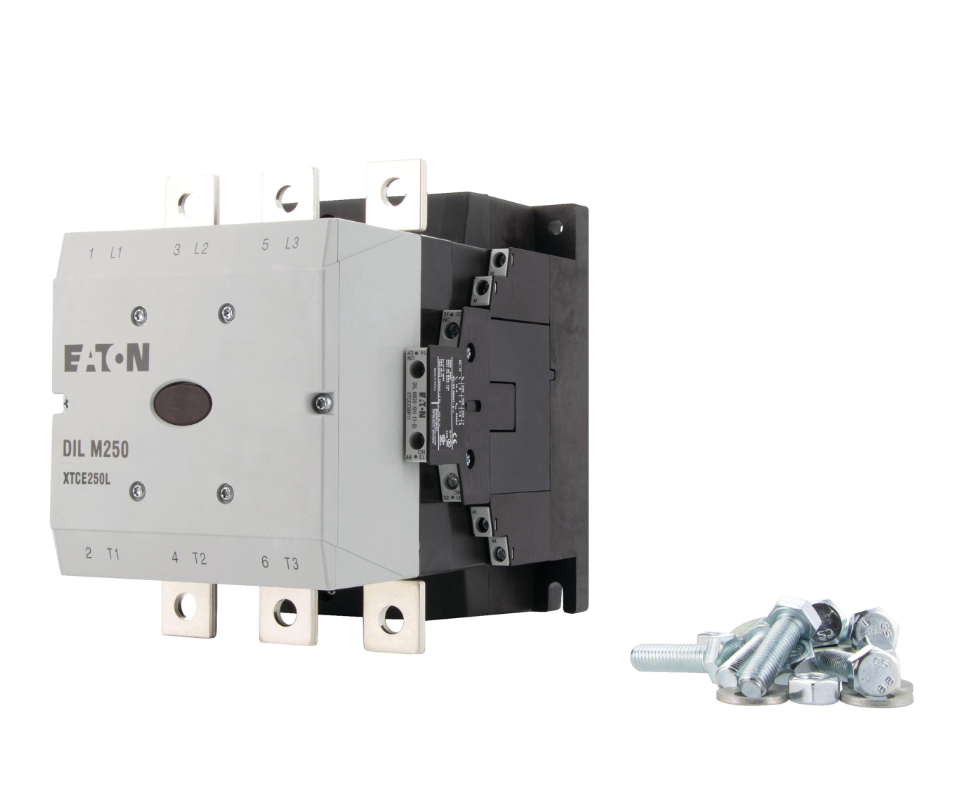

Contactor, 380 V 400 V 132 kW, 2 N/O, 2 NC, RDC 48

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton Moeller® series DILM Contactor

CATALOG NUMBER
208199

MODEL CODE
DILM250/22(RDC48)

EAN
4015082081997

PRODUCT LENGTH/DEPTH
208 mm

PRODUCT HEIGHT
189 mm

PRODUCT WIDTH
140 mm

PRODUCT WEIGHT
7.226 kg

CERTIFICATIONS
VDE 0660
CSA Class No.: 3211-04
IEC/EN 60947-4-1
UL Category Control No.: NLDX
UL 60947-4-1
UL File No.: E29096
UL/CSA
CSA File No. 1017510
North America (UL listed, CSA certified)
EN 45545: Fire protection on railway vehicles
IEC 61373: Vibration and shock, tested for category 1 class B
CE marking

CATALOG NOTES
Contacts according to EN 50012
Also tested according to AC-3e up to 500 V.
Also suitable for motors with efficiency class IE3.
EN 45545 – Fire protection on railway vehicles: Fire protection class of all plastics according to UL94: V-0 / plastic weight in total: 1.872 kg
